Product Details:
Payment & Shipping Terms:
|
| Fuels: | Coal | Name: | Low Installation Costs Better Performance CFB Boiler Economizer Header |
|---|---|---|---|
| Usage: | Boiler System | Structure: | Fire/Water Tube |
| Pressure: | High/Low Pressure | Style: | CFB Boiler |
| Fuel: | Coal/Gas/Oil-fired, Water Heat | Output: | Hot Water/Steam |
| Dimension(L*W*H): | Customization | Weight: | 10~1000ton |
| Keywords: | Steam Boiler Header | Product Name: | High Pressure CFB Boiler Header Steam Boiler Header With ASME |
| High Light: | boiler steam header,boiler header |
||

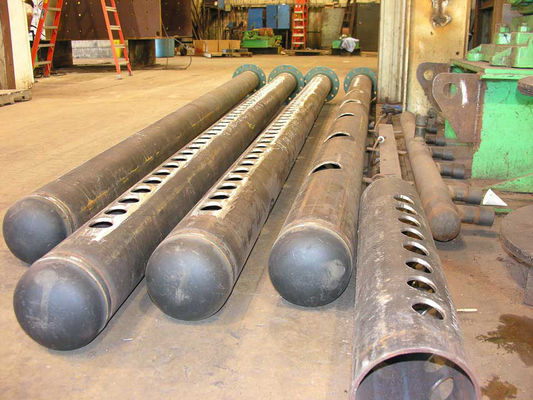

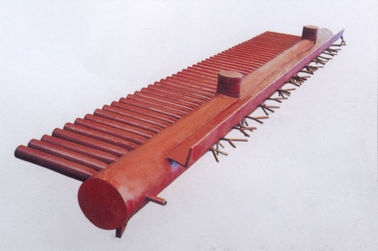

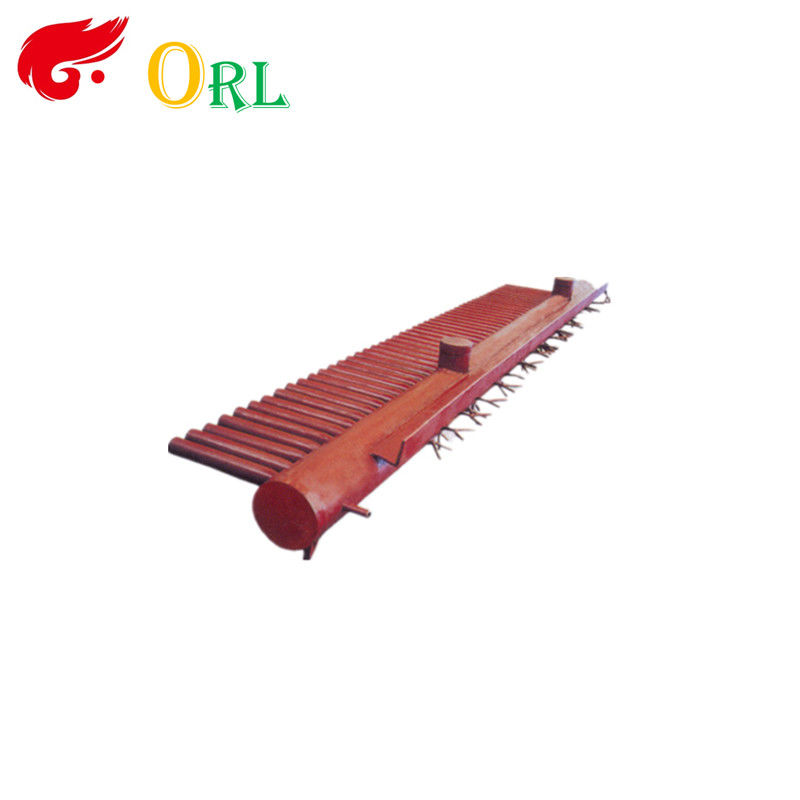

High Pressure CFB Boiler Header Steam Boiler Header with ASME
Descriptions:
Steam header is a necessary device for steam boiler. It is mainly used for power generation, iron and steel industry, oil and chemical industry, cement industry, and construction industry, etc
The boiler headers have water wall header, superheater header, economizer header and so on. It acts as collection, mixture, re-distributing working medium. As the structure, it can be classified as the end cover type ( end enclosure) and necking down type.
Boiler headers, or boiler manifolds are designed to simplify piping near the boiler, reduce installation time, labor costs and parts used. Available in various branch options with threaded inlet and outlet connections. For closed loop heating applications only.
Boiler header, also called sub-drum,widely used in power generation, petrochemicals, steel, cement, construction and other industries.
Specification:
1. Steam header body diameter: 6inch ,8inch,10inch,12inch,and so on
2. Branch pipe:1',2',3',4',5',6' and so on.
3. pressure:1.0mpa,1.25mpa,1.6mpa,2.0mpa,2.5mpa
4. material:pressure vessel carbon steel.
Kindly tell us the steam header body size and branch size and branch pipe numbers when you want to order this product. Thank you.
Technical Parameter:
| Body Materials |
Carbon Steel(20#,20G,SA192,A-1),Alloy Steel(15CrMoG,12Cr1MoVG,T11,T22)etc.
|
| Type | header body, end cover, tube joint, hand cole, thermometer socket;seamless steel tube, pressure parts |
| Advantages | advanced welding, safe and reliable operation |
| Working Pressure | Depend on material |
| Standard | China GB, ASME |
| Dimension | Customization |
| Welding | SMAW, SAW,GTAW (TIG) |
| Manufacturing process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Drilling→Welding→RT, PT→ Inspection →Heat treatment →Hydraulic pressure test→Painting→Packaging |
| Remarks | Customized order is also accepted. |
