ISO9001 10-1000 Ton Gas Fired Boiler Super Heater

China Suzhou orl power engineering co ., ltd certification
China Suzhou orl power engineering co ., ltd certification
It's really a great idea to make cooperation with you.

—— Vipin Bhardwaj

save money and time ,Excellent quality ,prefect service ,Enthusiastic and creative team.Great!

—— Yavorovich Nikolay

Unique creativity, a strong design team, new products, new surprises, every order can bring a lot of profit.

—— Ghaleb Jaber

I'm Online Chat Now

ISO9001 10-1000 Ton Gas Fired Boiler Super Heater

ISO9001 10-1000 Ton Gas Fired Boiler Super Heater
ISO9001 10-1000 Ton Gas Fired Boiler Super Heater ISO9001 10-1000 Ton Gas Fired Boiler Super Heater ISO9001 10-1000 Ton Gas Fired Boiler Super Heater

Large Image :  ISO9001 10-1000 Ton Gas Fired Boiler Super Heater

Product Details:
Place of Origin: Zhangjiagang,Jiangsu,China
Brand Name: ORL Power
Certification: ISO9001/SGS/TUV/ASME/EN
Model Number: Boiler Superheater
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets 10tons
Price: Contact me | Get Latest Price
Packaging Details: Iron Frame Package
Delivery Time: 50~100 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500Ton/Tons per Month
Detailed Product Description
Name: Boiler Superheater Type: Natural Circulation/Once Through
Usage: Gas Fired Boiler Structure: Fire/Water Tube
Pressure: Low Pressure Style: CFB Boiler
Fuel: Coal/Gas/Oil-fired, Water Heat Output: Hot Water/Steam
Dimension(L*W*H): Customization Weight: 10~1000ton
High Light:

gas fired boiler super heater

,

1000 ton boiler super heater

,

ISO9001 boiler super heater

10~1000 Ton Gas Fired Boiler Superheater / Low Pressure Steam Super Heater







Boiler Superheater Description





Technical parameters:

Material

carbon steel, alloy steel , or durable heat steel

Tube OD

30-60mm, or as per requirement

Tube W.T.

0.8mm- 15mm

Structure

vertical or horizontal

Type

radiant, convection superheater



Super heater types:


1. Radiant super heater: it is the earliest type of super heater and it is located above or behind banks of water tubes to protection them from direct flam or fire.
Parameters that increases the convection
a. Increasing the fuel-and air flow (combustion gas flow)
b. Increasing the mass flow rate of the steam
Radiation is mainly dependent on the flam temperature. as the steam flow rate increases the exit temperature become lower.

Radiant super heater


They are placed exposed to the heat source whcih requires the improvement of metal temperatures.
Radiant and convetive super heaters and reheaters are used for high temperature steam.
The accessory of high temperature radiant steam super heater in boiler
It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have φ32, φ38, φ42 or other types of specifications, according to user's needs separately.



Super heaters are the one of the most important boiler sapre parts that improves the thermal efficiency. High temperature steam boiler radiant super heater is usually applied in high pressure power plant boiler.
In the boiler, the role of super heater is to heat the saturated steam to a certain temperature of superheated steam to increase power plant efficiency. Repeater essentially further improves the thermal power plant cycle efficiency.
Steam Super heater Coils: Super heater coils are used in a boiler to generate saturated steam. The super heater coils are specially used in Boilers of Power plant. We manufacture Super heater coils in various grades of Alloy steel and in stain less steel tubes with or without support & Header as per customer's drawing.







Reheaters


They are the sane as the super heaters but as their exit temperature is a little bit less than super heaters and their pressure is 20% -25% less than the super heater, they can stand less quality material alloys.

Application:

Steam super heater is consisted of dense tube coils and is placed in the flue under the tempearture 450ºC-1000ºC.
For power plant boiler capacity over 10Mpa, platen and coiled superheater are usually adopted.

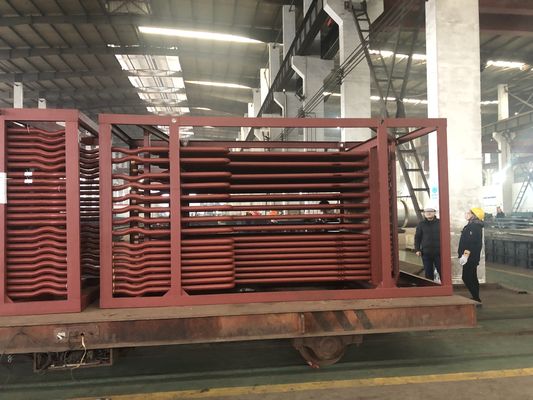

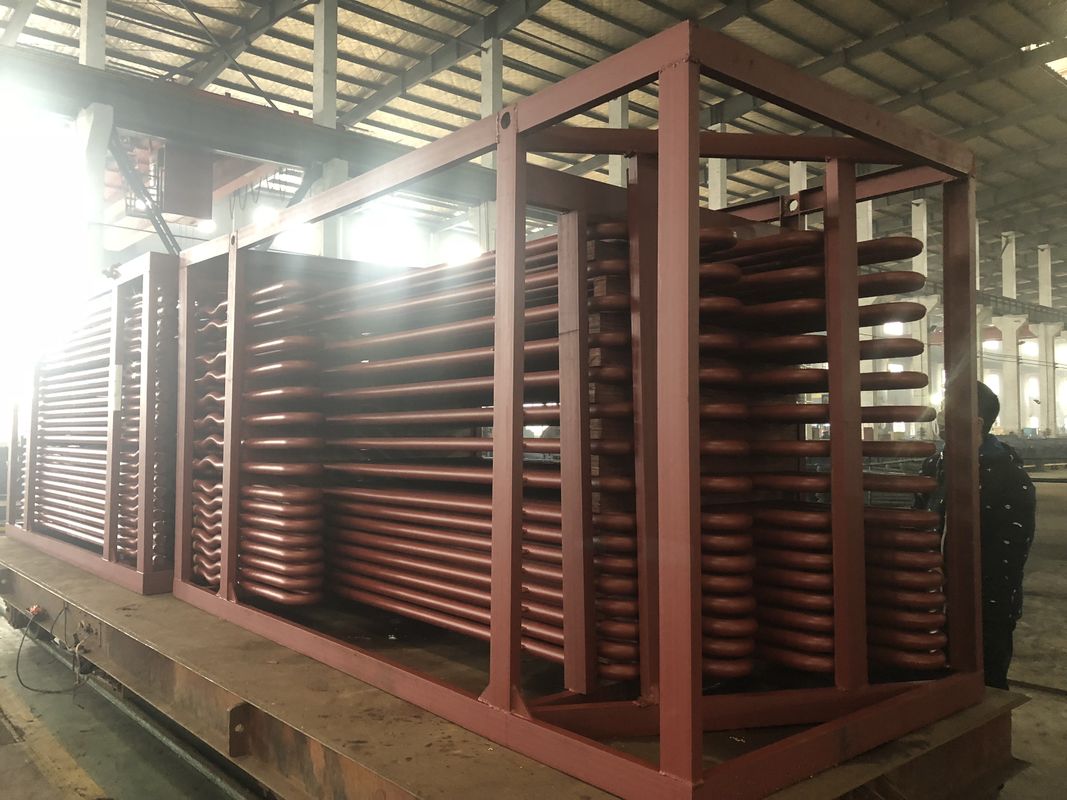

Boiler Superheater Detailed Images

ISO9001 10-1000 Ton Gas Fired Boiler Super Heater 0

ISO9001 10-1000 Ton Gas Fired Boiler Super Heater 1



FAQ



1. Why choose us?

We are boiler and boiler parts(boiler drum, boiler waterwall panel, boiler economizer, boiler header, boiler cyclone separator, boiler flue pipe, boiler air preheater, boiler pipe, boiler tube)manufacture and we are one of the best suppliers in China.

We ensure the deliver time, high quality, and the best after-sale service for you.



2. How to order?
Welcome come to our factory for inspecting and discussion the technical details.
