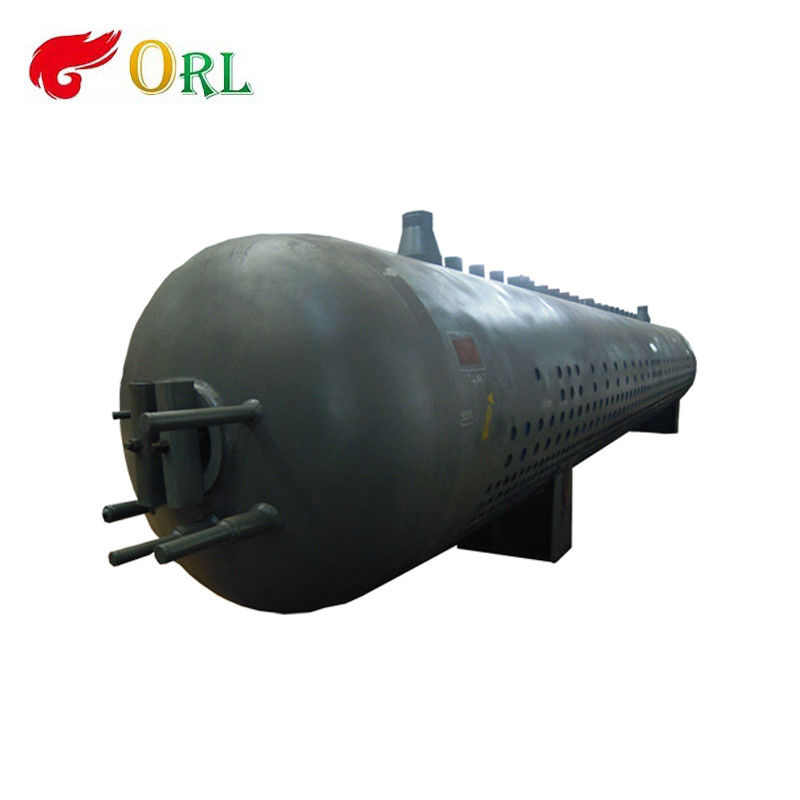

22.5 MPa Boiler Steam Drum

22.5 MPa Boiler Steam Drum
22.5 MPa Boiler Steam Drum

Large Image :  22.5 MPa Boiler Steam Drum

Product Details:
Place of Origin: Zhangjiagang,Jiangsu,China
Brand Name: ORL Power
Certification: ISO9001/SGS/TUV/ASME/EN
Model Number: Customization
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Iron Frame Package
Delivery Time: 50~100 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100Ton/Tons per Month
Detailed Product Description
Product Name: Boiler Steam Drum Pressure: 22.5 MPa
Structure: Fire/Water Tube Certification: ISO9001/SGS/TUV/ASME/EN
Fuel: Coal/Gas/Oil-fired, Water Heat Dimension(L*W*H): Customization
High Light:

22.5 MPa mud drum boiler


steel steam drum in boiler


Boiler Steam Drum

22.5 MPa Boiler Steam Drum


Boiler Steam Drum Description


1. It is a reservoir of water/steam at the top end of the water tubes.

2. Steam drums are a regular feature in many boiler systems.

3. The drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture.

4. The steam drum is also a water storage vessel which accomodates the changes in water level during load changes and internal water treatment


Boiler Steam Drum parameter


Product Name 22.5 MPa Boiler Steam Drum
Applied Area Natural circulation boiler
Drum Shell Plate Material

- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70

- Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353

Drum Head Material Same as shell
Nozzle Tube Material As per design
Standard China GB, ASME, EN
Manufacturer Grade China A Grade, ABS Certificated, TUV Certificated
Working Temperature Saturation Temperature at rated pressure
Working Pressure 1.6 MPa ~ 22.5 MPa

Shell Plate Thickness

(Drum Wall Thickness)

≤150 mm
Drum Diameter ≤3,200 mm
Drum Length ≤25,000 mm

- Shell : SMAW, SAW

- Nozzle tube : GTAW (TIG), SMAW

Welding NDT

- Shell longitudinal seam : 100% RT, 100% UT

- Shell circumferential seam : 100% RT, 15% UT

- Nozzle tube angle seam : 100% UT, 100% MT
