Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency
Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency
video play

Large Image :  Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency

Product Details:
Place of Origin: Zhangjiagang,Jiangsu,China
Brand Name: ORL Power
Certification: ISO9001/SGS/TUV/ASME/EN
Model Number: Customization
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets 10tons
Price: Contact me | Get Latest Price
Packaging Details: Iron Frame Package
Delivery Time: 50~100 Days
Payment Terms: T/T
Supply Ability: 500Ton/Tons per Month
Detailed Product Description
Condition: New Type: Natural Circulation/Once Through
Usage: Industry/Power Station Structure: Fire/Water Tube
Pressure: High/Low Pressure Style: Style
Fuel: Coal/Gas/Oil-fired, Water Heat Output: Hot Water/Steam
Dimension(L*W*H): Customization Weight: 10~1000ton
High Light:

boiler panel

,

boiler membrane wall tube

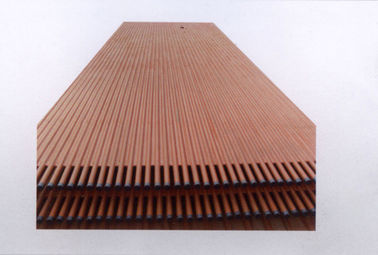

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency

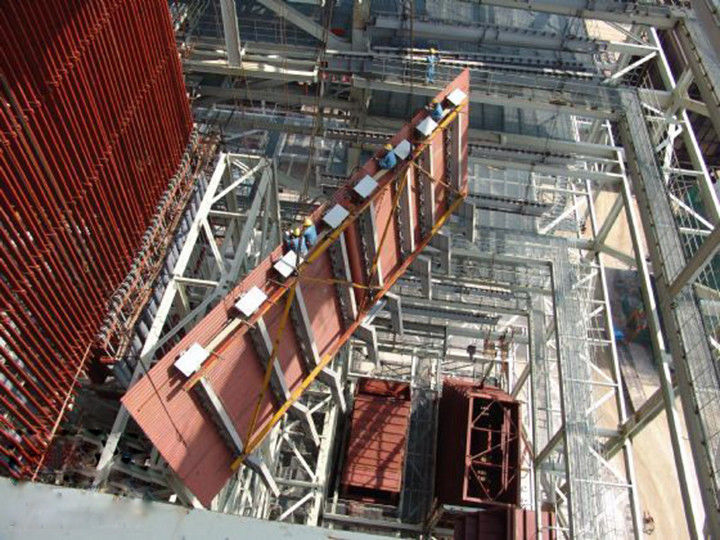

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 0

Water Wall Panels

Description

A waterwall in a boiler is any furnace wall that is comprised of refractory and tubes in a water-tube boiler. The tubes are evenly spaced and generally connect to headers which in turn are connected back to the main generating bank of the boiler. They serve a two fold purpose here in that they capture heat that would otherwise escape to the atmosphere and help heat the water in the boiler. And they also help keep the refractory cool .This prevents spalling of the refractory.

Our membrane water wall are manufactured with high grade raw material and contemporary production equipment at our advanced production unit. Various sizes, shapes and specifications, will meet all the requirements of our clients . Further, cargoes are delivered to the clients within lead time.

Specifications

Name Membrane water panel
Material Carbon steel,Alloy steel,etc.
Tube size Φ38 - 76 mm, Customization
Standard ISO , ASME
Model Studded
Dimension Customization
Manufacturing process Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Polishing→Tube joint welding→Assembly →Welding →Inspection→Heat treatment→Hydraulic pressure test→Painting→ Packaging
Installation location around the boiler combustion chamber



Advantages of Membrane Water Wall
1). To guarantee the leakproofness of furnace wall and reduce the air leak of combustion chamber.
2). To achieve the full water cooling of combustion chamber, and the boiler accessories membrane water wall is benefit to prevent coking under the condition of supplemental firing.
3). The thermal storage capacity is small, the warming of combustion chamber is fast and the cooling is also fast, which could shorten the cooling time of boiler’s start and furnace shut down.
4). It is good to adopt top supported water cooled wall and it could reduce the load of boiler framework, which is benefit to overhang.
5) Compared with the bare tubes, the membrane water wall improves the heat absorption capacity of tubes.
6) The factory direct boiler membrane water wall could improve the Preliminary combination degree of boiler parts and reduce the installation workload.





Company Information



Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 1

Suzhou ORL Power Engineering Co., Ltd.is located in Suzhou, Jiangsu Province.

ORL Power is a leading company and exporter of industrial boilers,power plant boilersand boiler parts (including steam drum, membrane waterwall panel,header,economizer, evaporator, superheater,H-fin economizer, spiral fin tube, air preheater, heat pipe, flue etc.), seamless steel tubes/pipes and ERW steel pipes.ORL provides our customer with full range of services including boiler design, fabrication, installation and commissioning, boiler maintenance, and supervision at site. Our product and service include design and manufacture industrial boilers, pressure vessels and tanks, and pressure parts for power plant boilers (600MW, or 1000MW).



Product Description

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 2







Boiler Parts

Boiler Drum,Boiler Waterwall Panel,Boiler Economizer,Boiler Header,Boiler Cyclone Separator,Boiler Chimney Flue Pipe,Boiler Air Preheater,Boiler Air Preheater





Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 3







Production Workshop

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 4Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 5

Boiler Product Test

Impact test,The scene to examine the water-wall,Industrial TV monitoring,Snake-like pipe water pressure test,Header endoscopic detection,Header weld inspection

Testing Center

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 6





Packaging & Shipping

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 7

Certifications

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 8

We have our boiler manufacturing plant, and obtain ISO9001:2008, ISO3834, ASME S, U and GB stamp.



Company Business

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 9

Our products have been wildly used in power plants and large international companies overseas.

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 10

Such as USA, Brazil, Porto Rico, Guatemala, Spain, Demark, Norway, Turkey, India, Korea, Australia, Middle East, Southeast Asia etc.



Trading Process

Vacuum Boiler Water Wall Panels / Water Tube Boiler Parts High Efficiency 11



ORL offers prompt response, professional products, and all-around service to our customers. Our experienced sales team and engineers are waiting for your enquiry and ready to provide sincere service. We cordially welcome domestic and overseas friends to visit our company and manufacturing bases, and look forward to building up long-term, mutual cooperative relationship with you.





FAQ

1. Why choose us?

We are boiler and boiler parts(boiler drum, boiler waterwall panel, boiler economizer, boiler header, boiler cyclone separator, boiler flue pipe, boiler air preheater, boiler pipe, boiler tube)manufacture and we are one of the best suppliers in China.

We ensure the deliver time, high quality, and the best after-sale service for you.

2. How to order?
Welcome come to our factory for inspecting and discussion the technical details.
