Payment & Shipping Terms:
|Condition:||New||Type:||Natural Circulation/Once Through|
|Fuel:||Coal/Gas/Oil-fired, Water Heat||Output:||Hot Water/Steam|
|Feature:||Steam-water Seperation||Package:||Iron Frame|
high pressure drum

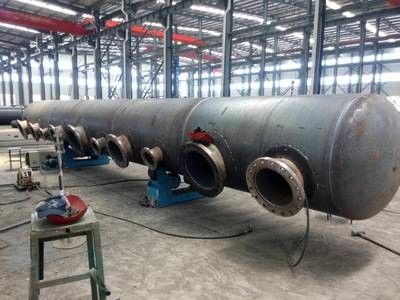

1000 Ton gas fire steam boiler drum TUV
Boiler Mud Drum
In the water tube boiler the upper drum (Boiler steam drum) provides for separation of steam from water. It also provides liquid holdup capacity (typically 10 to 60 seconds) to allow for a dynamic response to load changes without losing liquid in the downcomer and riser tubes. The size of the steam drum is determined by the volume required for a clean separation between steam and water to produce a dry saturated steam, it also provides an adequate amount of steam storage. The steam drum is also called the upper drum.

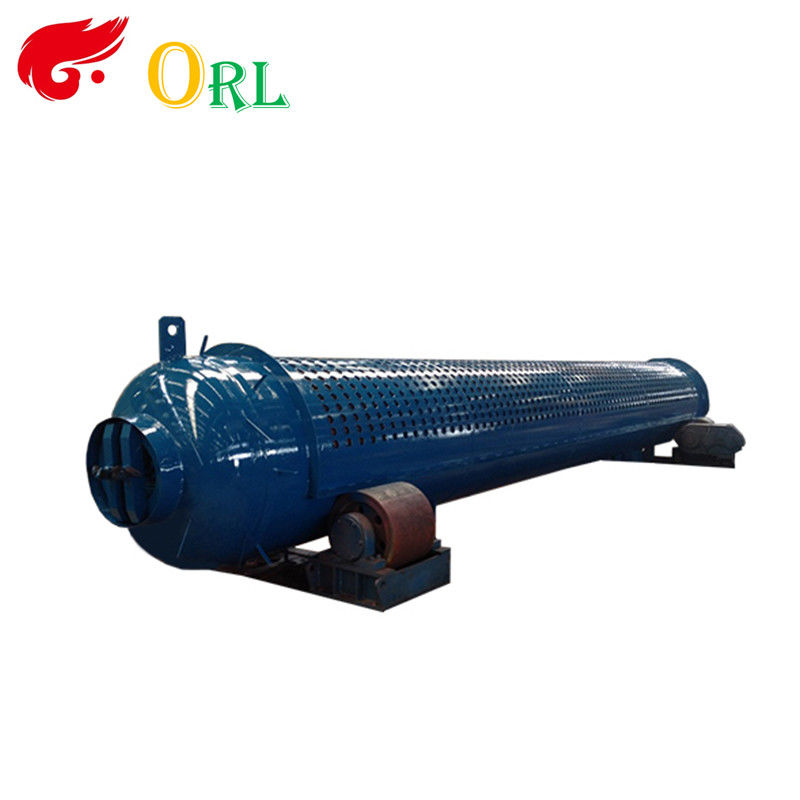

|Product Name||Boiler Steam Drum ( Steam Water Separator )|
|Applied Area||Natural circulation boiler|
|Drum Shell Plate Material||
- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70
- Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353
|Drum Head Material||Same as shell|
|Nozzle Tube Material||As per design|
|Standard||China GB, ASME, EN|
|Manufacturer Grade||China A Grade, ABS Certificated, TUV Certificated|
|Working Temperature||Saturation Temperature at rated pressure|
|Working Pressure||1.6 MPa ~ 22.5 MPa|
Shell Plate Thickness
(Drum Wall Thickness)
|Drum Diameter||≤3,200 mm|
|Drum Length||≤25,000 mm|
- Shell : SMAW, SAW
- Nozzle tube : GTAW (TIG), SMAW
- Shell longitudinal seam : 100% RT, 100% UT
- Shell circumferential seam : 100% RT, 15% UT
- Nozzle tube angle seam : 100% UT, 100% MT
Boiler Drum,Boiler Waterwall Panel,Boiler Economizer,Boiler Header,Boiler Cyclone Separator,Boiler Chimney Flue Pipe,Boiler Air Preheater,Boiler Air Preheater
|Name&Type||Supply Ability:||FOB Price|
|Boiler drum||100Ton/Tons per Month||Contact Me Get Latest Price|
|Boiler header||100Ton/Tons per Month||Contact Me Get Latest Price|
|Boiler waterwall panel||500Ton/Tons per Month||Contact Me Get Latest Price|
|Boiler economizer||500Ton/Tons per Month||Contact Me Get Latest Price|
|Boiler super heater||300Ton/Tons per Month||Contact Me Get Latest Price|
|Boiler air preheater||300Ton/Tons per Month||Contact Me Get Latest Price|
|Other||300Ton/Tons per Month||
Contact Me Get Latest Price
Suzhou ORL Power Engineering Co., Ltd.is located in Suzhou, Jiangsu Province.
ORL Power is a leading company and exporter of industrial boilers,power plant boilersand boiler parts (including steam drum, membrane waterwall panel,header,economizer, evaporator, superheater,H-fin economizer, spiral fin tube, air preheater, heat pipe, flue etc.), seamless steel tubes/pipes and ERW steel pipes.ORL provides our customer with full range of services including boiler design, fabrication, installation and commissioning, boiler maintenance, and supervision at site. Our product and service include design and manufacture industrial boilers, pressure vessels and tanks, and pressure parts for power plant boilers (600MW, or 1000MW).
Boiler Product Production
Boiler Cyclone Separator WorkShop, Boiler Coil Workshop, Boiler Waterwall Workshop.
Boiler Product Test
Impact test,The scene to examine the water-wall,Industrial TV monitoring,Snake-like pipe water pressure test,Header endoscopic detection,Header weld inspection
Packaging & Shipping
Our products have been wildly used in power plants and large international companies overseas.
Such as USA, Brazil, Porto Rico, Guatemala, Spain, Demark, Norway, Turkey, India, Korea, Australia, Middle East, Southeast Asia etc.
We have our boiler manufacturing plant, and obtain ISO9001:2008, ISO3834, ASME S, U and GB stamp.
ORL offers prompt response, professional products, and all-around service to our customers. Our experienced sales team and engineers are waiting for your enquiry and ready to provide sincere service. We cordially welcome domestic and overseas friends to visit our company and manufacturing bases, and look forward to building up long-term, mutual cooperative relationship with you.
1. Why choose us?
We are boiler and boiler parts(boiler drum, boiler waterwall panel, boiler economizer, boiler header, boiler cyclone separator, boiler flue pipe, boiler air preheater, boiler pipe, boiler tube)manufacture and we are one of the best suppliers in China.
We ensure the deliver time, high quality, and the best after-sale service for you.
2. How to order?
Welcome come to our factory for inspecting and discussion the technical details.
Contact Person: Mr Robin
