Payment & Shipping Terms:
|Structure:||Fire/Water Tube||Pressure:||High/Low Pressure|
|Style:||Power Station Boiler||Fuel:||Coal/Gas/Oil-fired,Water Heat|
|Weight:||10~1000ton||Keywords:||Power Station Boiler Superheater|
|Product Name:||Power Station Boiler Platen Superheater TUV Certification Manufacturer||Application:||Boiler Platen Superheater|
power station CFB boiler platen superheater TUV certification manufacturer
Super heaters are the one of the most important boiler sapre parts that improves the thermal efficiency. High temperature steam boiler radiant super heater is usually applied in high pressure power plant boiler.
In the boiler, the role of super heater is to heat the saturated steam to a certain temperature of superheated steam to increase power plant efficiency. Repeater essentially further improves the thermal power plant cycle efficiency.

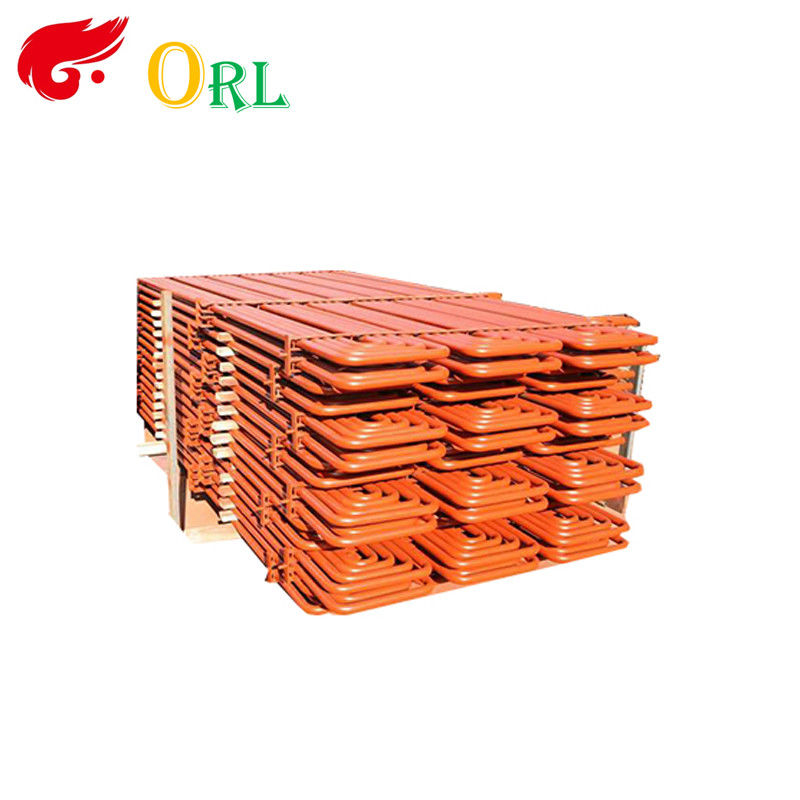

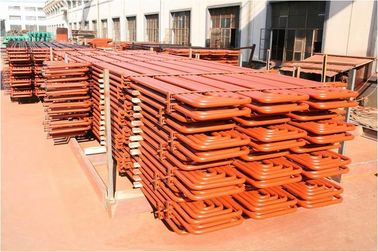

Steam Super heater Coils: Super heater coils are used in a boiler to generate saturated steam. The super heater coils are specially used in Boilers of Power plant. We manufacture Super heater coils in various grades of Alloy steel and in stain less steel tubes with or without support & Header as per customer's drawing.
Chinese GB and ASME material comparision:
In a boiler that made as per China GB standards, the materials are normally named as per their chemical element composition. This is always make engineers outside China confused. The way of naming is controlled by national standard “GB/T 221-2008 Notations for designations of iron and steel”.
In order to help engineers outside China understand GB, we made the following sheet to compare the common use materials.
|Structural Steel Plate|
|Q235||SA-283 gr. C|
|Q345||SA-1011 gr. 50|
|Pressure Steel Plate|
|Q235||SA-516 gr. 60|
|Pressure Steel Tube( Carbon Steel & Alloy Steel)|
|20#||SA-106 gr. B|
|20G||SA-106 gr. B|
|15CrMo||SA-213 T12/SA-335 P12||13CrMo 44/ 13CrMo45|
|12Cr2Mo||SA-213 T22/SA-335 P22|
|10Cr9Mo1VNbN||SA-213 T91/SA-335 P91|
|Pressure Steel Tube(Austenite Steel)|
Materials listed in the sheet are equivalent or same on Chemical Composition and Physical performance.
The only difference is sizing. Sizing of materials in GB are using ISO unit, which is millimeter (mm), in ASME is Inch.
Suzhou ORL Power Engineering Co., Ltd.is located in Suzhou, Jiangsu Province.
ORL Power is a leading company and exporter of industrial boilers,power plant boilersand boiler parts (including steam drum, membrane waterwall panel,header,economizer, evaporator, superheater,H-fin economizer, spiral fin tube, air preheater, heat pipe, flue etc.), seamless steel tubes/pipes and ERW steel pipes.ORL provides our customer with full range of services including boiler design, fabrication, installation and commissioning, boiler maintenance, and supervision at site. Our product and service include design and manufacture industrial boilers, pressure vessels and tanks, and pressure parts for power plant boilers (600MW, or 1000MW).
Function of economizer:
Recycle exhausted smoke to heat feed water,which can reduce the smoke temperature, save the fuel and increase the boiler effiency.
Boiler economizer type:
1. Economizer for solid fuel(coal, biomass, wood,etc) boiler.
2. Economizer for gas oil fired boiler.
Our gas oil fired economizer is finned tube design and aluminum silicate insulation, which has high thermal effiency and good condensation effect. ND steel can remove 80% oxygen.
How can you get the economizer price quickly?
1.You should tell us the economizer will be used in what capacity boiler.
2.You should tell us what fuel is the boiler burn.
3.You should tell us what is the steam pressure of the boiler.
After checking the above questions, we know exactly what economizer you need.
